EvoFILL Can

Sidel's latest can filler, EvoFILL Can, is the most technologically advanced filler for cans, which combines the best hygienic conditions with a greater flexibility, sustainability and performance level. This results in outstanding product quality and the lowest TCO.

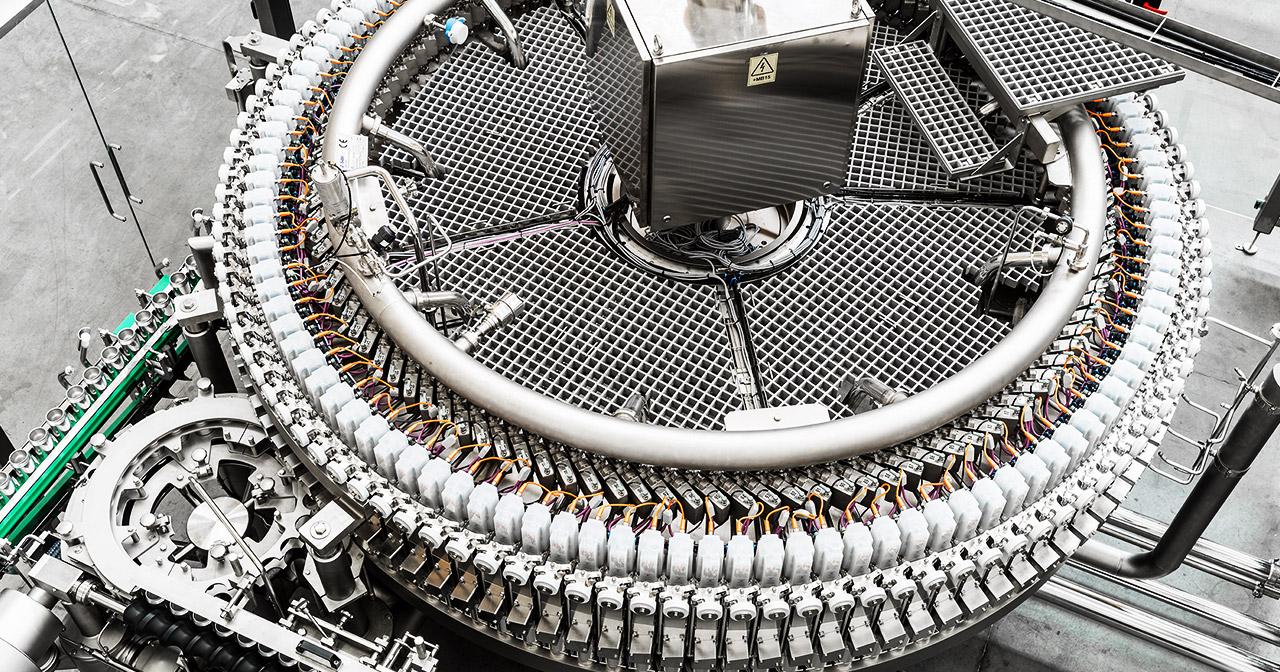

With 54 to 182 filling valves on EvoFILL Can’s carousel, beer, CSD and JNSDIT manufacturers are able to handle a wide range of speeds and can sizes, from 150ml up to 1L. Beverage and filling temperature flexibility is no longer an issue.

Without compromising the performance of the line, running at over 130,000 cans per hour, beer can be filled up to 18°C and CSD over 20°C. This allows an energy saving of up to 50% vs. filling at 14°C. On top, filling machines reduce the energy consumption by up to 30% by using servomotors instead of traditional drive systems. The new solution has also the capacity to fill CSD at ambient temperature and still drinks in hot-fill via a single piece of equipment. For utmost hygiene, EvoFILL Can features an external beverage tank and an integrated small chamber. This concept ensures a better and more effective cleaning of all parts that come into contact with the beverage. Plus, the chamber is completely full and accommodates the product only, for easier cleaning and reduced costs of maintenance.

Top three benefits:

  • Hygiene
  • Performance
  • Flexibility
All needs, all sizes
FILLER DIAMETER (mm) PITCH (mm) FILLING VALVES (n°)
2160 126 54
2160 103 66
2160 87 78
2520 87 91
2880 87 104
3240 87 117
3600 87 130
3960 87 143
4320 87 156
4680 87 169
5040 87 182

Features


We focus on customer satisfaction

Always by your side on every step of the way to build, maintain and improve your line performance
