EVODECO COLD GLUE

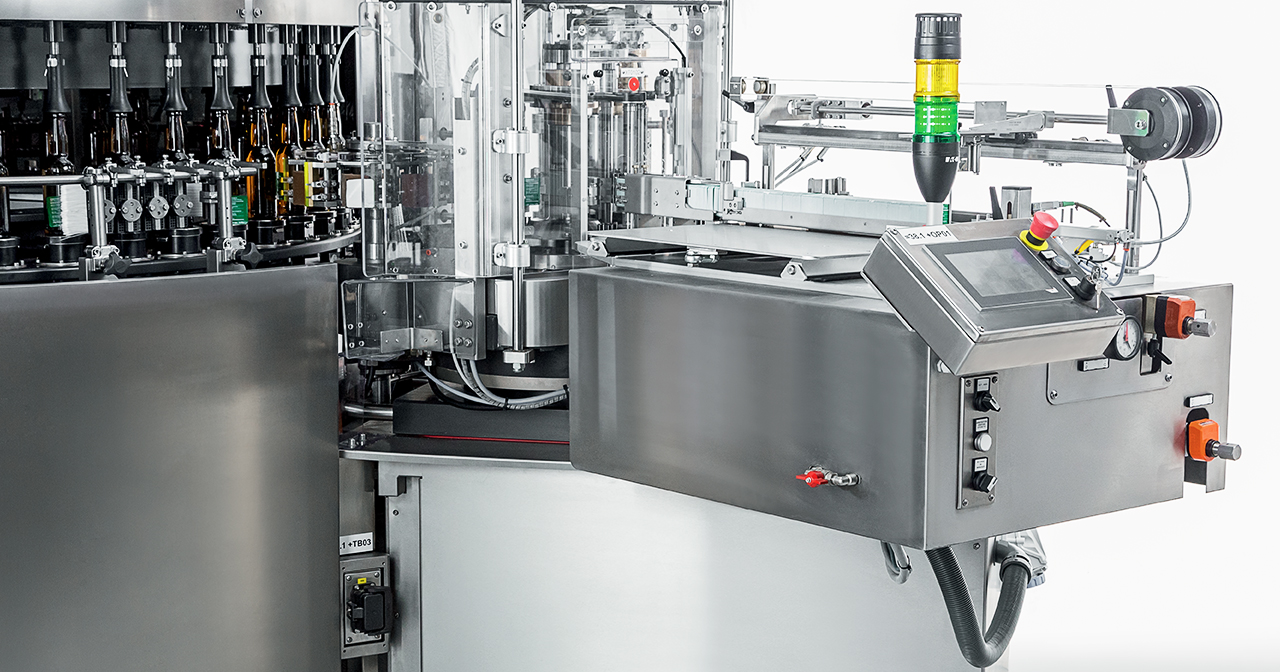

Sidel's EvoDECO Cold Glue labeller is available in six carousel sizes and can feature up to five labelling stations, making it easy to configure according to bottle size, output need and product type.

Capable to generate outputs of up to 81,000 containers per hour, the labelling solution handles partial pre-cut paper labels, as such it is particularly suitable for the beer, food, home and personal care markets.

Find the labeller model to fit your bottles production

Max Speed
(bph)



 Number of different labels/modules



Bottle diameter
(mm)

Carousel diameter
(mm)



 Heads



Pitch
(mm)



Min Max
24,000 50  128  1080  18  188
48,000 50  118  1440  36 125
60,000  50  118  1800  45  125
81,000 3 50 100 2160 60 113
Label specifications
Station ModelLabel lenght (mm)Label height (mm)Label materials
 Number of pallets-grippers   Min Max  Min  Max
5 - 5 20 195  20  200  Paper Aluminium
7 - 7  20  150  20  200
8 - 8  20  130  20  120
8 - 9  20  110  20  120
