Sidel’s most flexible labelling solution, the EvoDECO Multi, brings modularity into labelling. It offers a standardised carousel that can be equipped with up to four different labelling technologies: roll-fed, self-adhesive, cold glue and hot melt.
The EvoDECO Multi allows for up to 36 layout configurations and a 30% faster changeover time. Switching between the various labelling modules is quick and easy, thanks to Plug & Play connections that give producers the freedom of labelling choice and total flexibility.
Up to 40% reduced energy consumption also allows you to reduce your carbon footprint for an environmentally sustainable solution.
| Carousel (mm) | Number of modules | Pitch available (mm) | |||||
|---|---|---|---|---|---|---|---|
| 720 | 1 | 94 | 113 | 125 | 141 | 188 | 251 |
| 1080 | 2 | 94 | 113 | 125 | 141 | 188 | NA |
| 1440 | 3 | 94 | 113 | 125 | 141 | 188 | 251 |
| 1800 | 3 | 94 | 113 | 125 | 141 | 188 | NA |
| 2160 | 4 | NA | 113 | 125 | 141 | 188 | 251 |
| 2520 | 5 | NA | 113 | 125 | 141 | 188 | NA |
The EvoDECO Multi allows manufacturers to set up the machine for their unique labelling needs:
In the design of the EvoDECO Multi, special attention has been paid to ergonomics and operator safety, resulting in increased uptime:

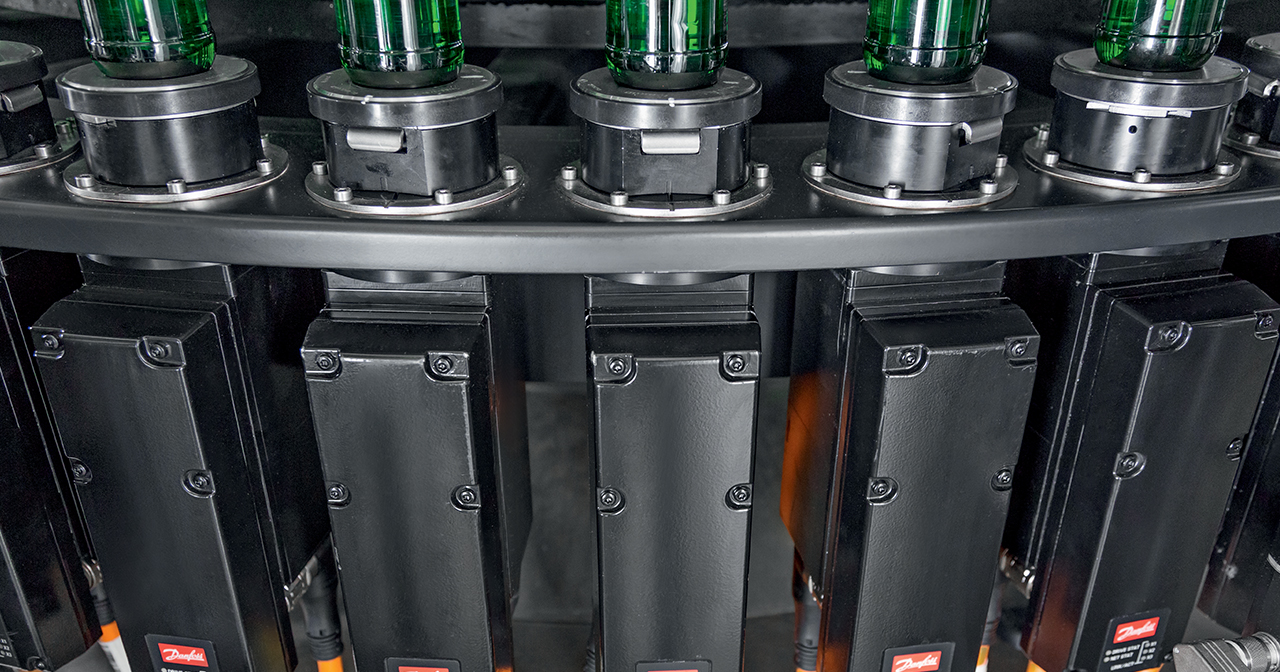

New brushless motors integrated into the carousel and the labelling stations remove the need for lubrication and achieve great energy savings:
The new EvoDECO Multi labeller can handle all labels, even ultra-thin, with utmost precision, ensuring top label quality application:
Always by your side on every step of the way to build, maintain and improve your line performance
